Product Details

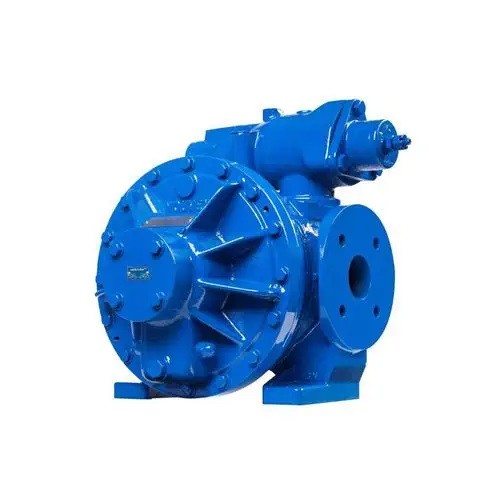

PAX Food Product Pumps have been known for their reliability, durability and cost effectiveness, earning a reputation as the ideal pumping technology for some of the harshest applications in the world. With thousands operating worldwide, A Series pumps are well suited for a variety of products up to 50 m3/h.
PAX Food Product Pumps have been known for their reliability, durability and cost effectiveness, earning a reputation as the ideal pumping technology for some of the harshest applications in the world. With thousands operating worldwide, A Series pumps are well suited for a variety of products up to 50 m3/h.
Performance and Specifications
Exceptional self-priming capabilities
Legendary ruggedness
Maintain initial performance level over time without any adjustment
Unchanging characteristics
Maintain a regular and constant output independent of the delivery pressure
Practically unlimited scope of application
Reversibility
Excellent efficiency
Options
Double bypass for protection when operating in both directions
High temperature: HT version for AF and AK models enable high-temperature transfer (up to 250°C)
Heating or cold jacket for transferring products that can solidify at ambient temperature.
CHARACTERISTICS
| Fluid | for food products |
| Operation | electric |
| Priming | self-priming |
| Technology | eccentric disc |
| Mobility | stationary |
| Domain | industrial |
| Applications | transfer, high-temperature |
| Material | cast iron, steel, bronze |
| Fluid specification | for viscous fluids |
| Other characteristics | heating |
| Flow | Max.: 55 m³/h (1,942.30667 ft³/h) Min.: 1.2 m³/h (42.3776 ft³/h) |
| Pressure | 5 bar, 10 bar (72.519 psi) |
| Fluid temperature | 130 °C (266 °F) |
| Length | Max.: 570 mm (22 in) Min.: 175 mm (7 in) |
| Width | Max.: 458 mm (18.03 in) Min.: 156 mm (6.14 in) |
| Height | Max.: 475 mm (19 in) Min.: 120 mm (5 in) |
| Weight | Max.: 150 kg (330.69 lb) Min.: 5 kg (11.02 lb) |
