Product Details

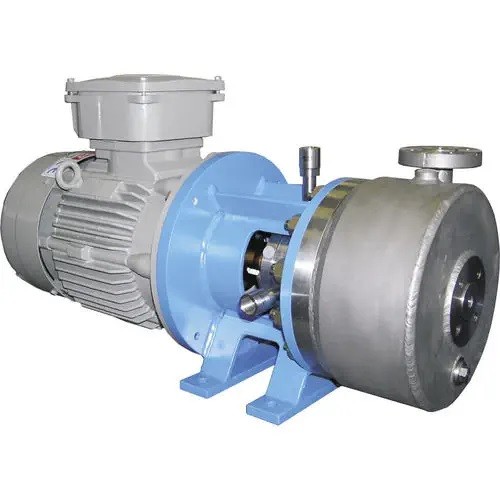

To validate new processes for commercial systems, the processes are first tested in pilot systems. Often the delivery rates are low, ranging between 0.5 to 8 m³/h, and cannot be realised with a reactor pump. For this reason, Egger has developed a pilot pump S that meets all requirements for commercial process pumps. This series has been designed for boundary conditions of 25vol% gas fraction, 100 bar system pressure and a temperature of 280°C.
To validate new processes for commercial systems, the processes are first tested in pilot systems. Often the delivery rates are low, ranging between 0.5 to 8 m³/h, and cannot be realised with a reactor pump. For this reason, Egger has developed a pilot pump S that meets all requirements for commercial process pumps. This series has been designed for boundary conditions of 25vol% gas fraction, 100 bar system pressure and a temperature of 280°C.
Applications
- Pilot plant reactors
- Laboratory pilot plants
Features
- Multiphase mixtures with solids and gas
- Hydration
- Ethoxylation
Advantages
- Executions with heating jacket available
- Reinforced bearings
CHARACTERISTICS
| Fluid | for chemicals |
| Operation | with electric motor |
| Technology | centrifugal |
| Mobility | stationary |
| Domain | industrial, for the chemical industry, for the food industry, for the petrochemical industry, laboratory |
| Applications | high-pressure, process, high-temperature, reaction |
| Material | stainless steel, nickel alloy |
| Fluid specification | for low-viscosity fluids, for medium-viscosity products, for corrosive fluids, for hot oil |
| Protection level | chemical-resistant, abrasion-resistant, explosion-proof, ATEX |
| Other characteristics | reinforced, multiphase, low-flow, heating |
| Flow | |
Min.: 0.5 m³/h (17.65733 ft³/h) Max.: 8 m³/h (282.51733 ft³/h) | |
| Pressure | Min.: 0 bar (0 psi) Max.: 100 bar (1,450.377 psi) |
| Head | Min.: 0 m (0'00") Max.: 45 m (147'07") |
| Fluid temperature | 125 °C (257 °F) |
