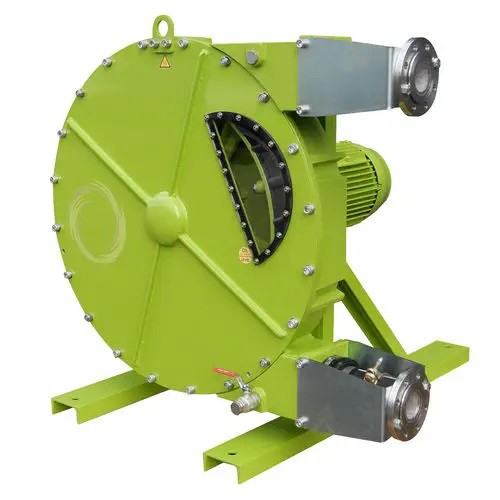

High pressure (alh) peristaltic pump - albin pump
HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 54 m3/h (238 gpm)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Outlet pressures up to 15 bar (220 psi)
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
CHARACTERISTICS
| Fluid | water, for chemicals, slurry, for food products, for lubricants, for biogas, grout, for cement, for self-leveling floor screed, plaster |
| Operation | electric |
| Priming | self-priming |
| Technology | peristaltic |
| Mobility | stationary |
| Domain | for the food industry, industrial, for the chemical industry, for water treatment, for public works, for methanizers, agriculture, for the mining industry, for renewable energy, for the construction industry, for machine tools, for the textile industry, for the paper industry, for the printing industry, for the biotechnology industry, fish farming, for the automotive industry |
| Applications | sump, metering, transfer, filling, medium-pressure, volumetric dispensing, suction, unloader, treatment, for printing machines, for self-leveling floor screed, loading, high-pressure, for reverse osmosis, for high-pressure applications, process, discharge, circulation, unloading, for high-temperature applications, for pumping stations, cooling, recirculation, dual dispensing, chemical process, for industrial applications, for hazardous locations, high-temperature, for power stations, sanitation, high-volume, irrigation, sewage, distribution, for harsh environments, extraction, dewatering, trial, reverse |
| Material | stainless steel, cast iron, aluminum, plastic, steel, PTFE, polypropylene, metal |
| Fluid specification | for abrasive fluids, for aggressive media, for solids-laden fluids, for 2-component resins, coagulant, for viscous fluids, for brine, dye, for high-viscosity fluids, for corrosive fluids, for heavy fluids, for low-viscosity fluids, cutting fluid, for mineral oil, for supercritical fluids, for hazardous fluids, for toxic fluids, for used oil |
| Voltage | 380V |
| Protection level | chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, with integrated safety, hazardous-duty, ATEX, corrosion-resistant, robust |
| Other characteristics | high-performance, horizontal mount, compact, suction, standard, corrosion-proof, fixed-flow, medium-flow, custom, modular, adjustable-flow, low-pressure, direct-drive, flange, high-reliability, stand-alone, dual-head, medium-capacity, variable-speed, for harsh environments, lubricated, base-mounted, easy tube loading, floor-mounted, low-noise, seal-less, fixed-displacement, bi-directional, with stand, variable-flow, large, low-vibration, high-capacity, in-line, high-flow, skid-mounted, fixed-speed, for fluids, reinforced, rotary, heavy-duty, with gear reducer, with speed controller, medium-sized, low-NPSH, continuous-flow |
| Flow | Max.: 54 m³/h (1,906.992 ft³/h) Min.: 21 m³/h (741.608 ft³/h) |
| Pressure | Max.: 15 bar (217.557 psi) Min.: 1 bar (14.504 psi) |
| Power | Max.: 22 kW (29.91 hp) Min.: 15 kW (20.39 hp) |
| Length | Max.: 2,000 mm (79 in) Min.: 2,000 mm (79 in) |
| Width | Max.: 1,572 mm (61.89 in) Min.: 1,572 mm (61.89 in) |
| Height | Max.: 1,680 mm (66 in) Min.: 1,680 mm (66 in) |
| Weight | Max.: 1,280 kg (2,821.92 lb) Min.: 1,270 kg (2,799.87 lb) |
