Stainless steel electric surface pumps with magnetic drive peripheral impeller, ideal for increasing or maintaining circulating pressures in closed circuit systems.

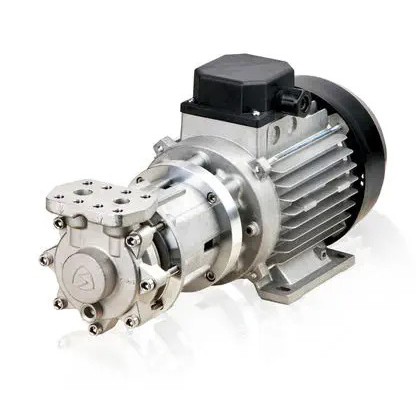

PAX-RTP
Magnetic driven regenerative turbine pumps.
Hydraulic Performance
Stainless steel electric surface pumps with magnetic drive peripheral impeller, ideal for increasing or maintaining circulating pressures in closed circuit systems.
Operation with oils, clear and clean liquids without suspended solids or abrasives. Thanks to the innovative impeller drive system, the motion is transmitted via magnetic joints without using mechanical seals, thus virtually reducing the risk of leakage to zero with a consequent reduction in maintenance costs. The quality of materials and design choices make it an extremely versatile pump also for heavy-duty application areas and operating conditions. They are developed for operation with diathermic oil or pressurized water at high temperatures. They are however equally used in applications with moderately aggressive dilutions and generally where it is required to minimise the risks for man and machinery. Surface pumps specially dedicated to industrial sectors/applications.
CHARACTERISTICS
| Fluid | for industrial water, cooling water, condensate, coolant, alkalis, oil, diathermic oil, hydrogen |
| Operation | magnetic-drive |
| Technology | regenerative turbine |
| Mobility | stationary, mobile |
| Domain | industrial, for the pharmaceutical industry, for the food industry, agriculture, laboratory, for the construction industry, medical, for machine tools, for renewable energy, for the semiconductor industry, for data centers |
| Applications | high-temperature, transfer, for HPLC systems, for thermal power plants, purge, process, for automatic machines, cooling, filling, for washing, for industrial applications, for HPLC, adjustment, for air conditioning, for high-temperature applications, for printing machines, for cutting machine, for cooling systems, for solar collectors |
| Material | stainless steel |
| Fluid specification | for refrigerant fluids, for hot oil, for high-purity fluids, for supercritical fluids |
| Protection level | chemical-resistant |
| Other characteristics | compact, heavy-duty, high-performance, low-noise, for fluids, seal-less, bi-directional, for heating systems, cryogenic |
| Flow | Min.: 5 l/min (1.32086 us gal/min) Max.: 200 l/min (52.83441 us gal/min) |
| Pressure | Min.: 1 bar (14.504 psi) Max.: 15 bar (217.557 psi) |
| Head | Min.: 1 m (3'03") Max.: 150 m (492'01") |
| Power | Min.: 0.15 kW (0.2 hp) Max.: 2.95 kW (4.01 hp) |
| Fluid temperature | Min.: -100 °C (-148 °F) Max.: 120 °C (248 °F) |
| Length | Min.: 233 mm (9 in) Max.: 492 mm (19 in) |
| Width | Min.: 110 mm (4.33 in) Max.: 170 mm (6.69 in) |
| Height | Min.: 146 mm (6 in) Max.: 211 mm (8 in) |
| Weight | Min.: 4.1 kg (9.04 lb) Max.: 28.8 kg (63.49 lb) |
